Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication

Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication

84 Flow Rate Prepaid Water Meter

Mobile Payment Integration Smart Water Meter

LORA-RF Communication STS Water Meter

Luogo di origine:

Hunan, Cina

Marca:

Stron

Contattaci
Chiedi un preventivo
Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication
Dettagli del prodotto
Classe di protezione:
IP68
Portata:
84
Intervallo di misurazione:
1 km
Misurare:
DN15mm~DN25mm (1/2''~1-1/2'')
Materiale:
corpo in plastica
Rapporto di precisione:
R100
Pressione massima:
16 Bar
Temperatura massima:
50°C
Durata della batteria:
6 anni
Comunicazione:
LORA-RF o Bluetooth 4.0
Lunghezza:
165/190 mm, 190 mm, 225/260 mm
Larghezza:
99 mm, 99 mm, 103 mm
Altezza:
104 mm, 106 mm, 114 mm
Fio di connessione:
G3/4B, G1B, G1-1/4B
Lettura massima:
99999
Evidenziare:

84 Flow Rate Prepaid Water Meter

,

Mobile Payment Integration Smart Water Meter

,

LORA-RF Communication STS Water Meter

Termini di pagamento e spedizione
Quantità di ordine minimo
100
Prezzo
$31-38
Prodotti correlati
Un buon prezzo. STS Certified Prepaid Integrated Smart Water Meter (Accurate Metering + Remote Control in linea Video

STS Certified Prepaid Integrated Smart Water Meter (Accurate Metering + Remote Control

Ottieni il miglior prezzo
Un buon prezzo. STS Prepaid Split Water Meter Brass IP68 LoRa Wireless communication RF Lora Ciu in linea Video

STS Prepaid Split Water Meter Brass IP68 LoRa Wireless communication RF Lora Ciu

Ottieni il miglior prezzo
Un buon prezzo. Contatore d'acqua prepagato Plastic IP68 LoRa Wireless Customized OEM Support Smart Prepaid Cold Water Meter Multi-Jet LoRa Remote IP68 6-8 anni durata della batteria Leggibile e conveniente in linea Video

Contatore d'acqua prepagato Plastic IP68 LoRa Wireless Customized OEM Support Smart Prepaid Cold Water Meter Multi-Jet LoRa Remote IP68 6-8 anni durata della batteria Leggibile e conveniente

Ottieni il miglior prezzo
Un buon prezzo. STS Prepagato Metro Acqua Rame IP68 LoRa Comunicazione wireless RF Lora Ciu in linea Video

STS Prepagato Metro Acqua Rame IP68 LoRa Comunicazione wireless RF Lora Ciu

Ottieni il miglior prezzo
Contattaci
Contattaci ora
Descrizione del prodotto
Customizable Integrated Smart STS 84 Water Meter
Premium Quality at Competitive Pricing

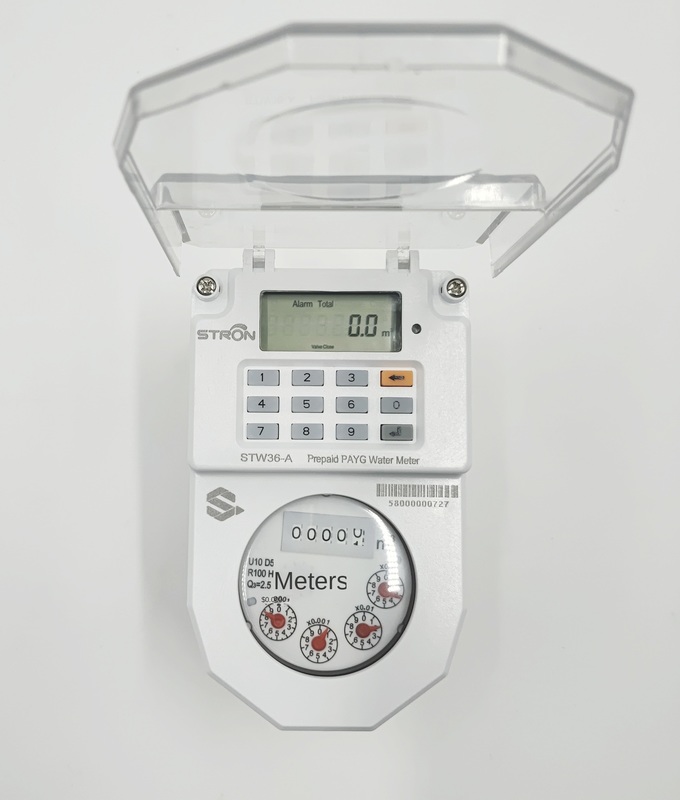

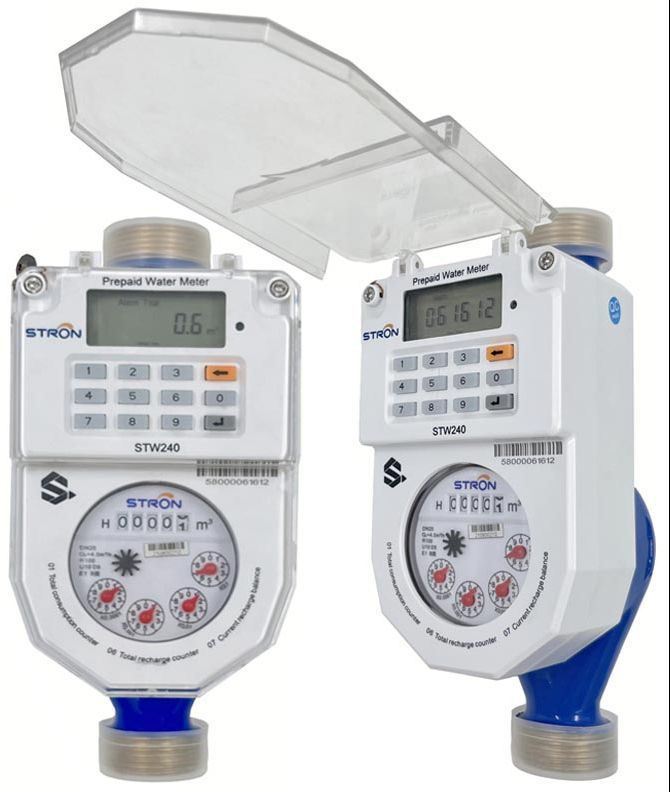

Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication 0 Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication 1

Low price, high quality - The STW36-A Prepaid water meter offers exceptional value for African markets, combining smart technology with affordable pricing thanks to reduced production and logistics costs.

Precision Measurement with Advanced Protection

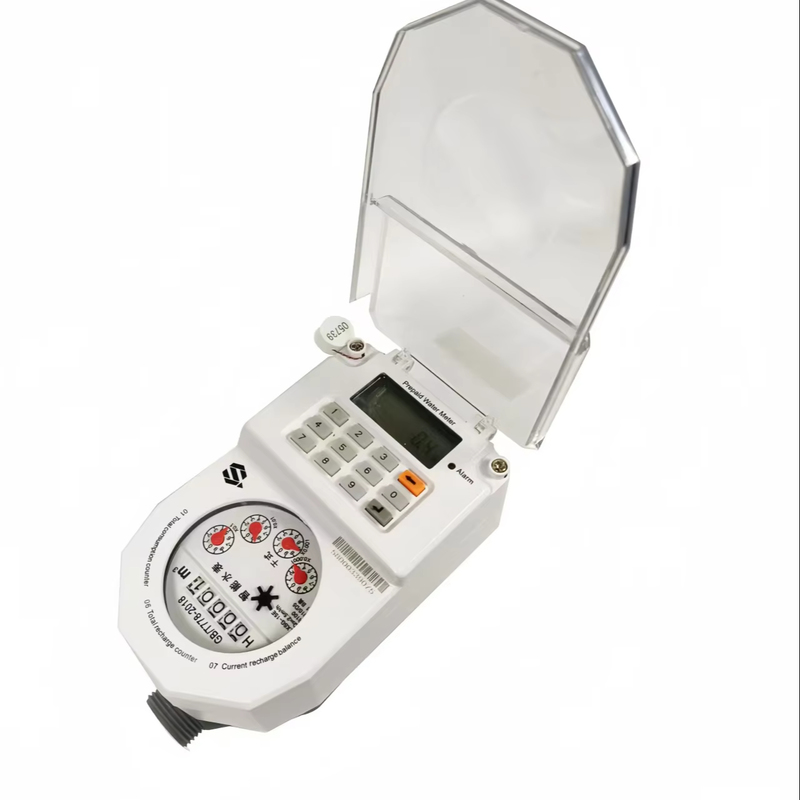

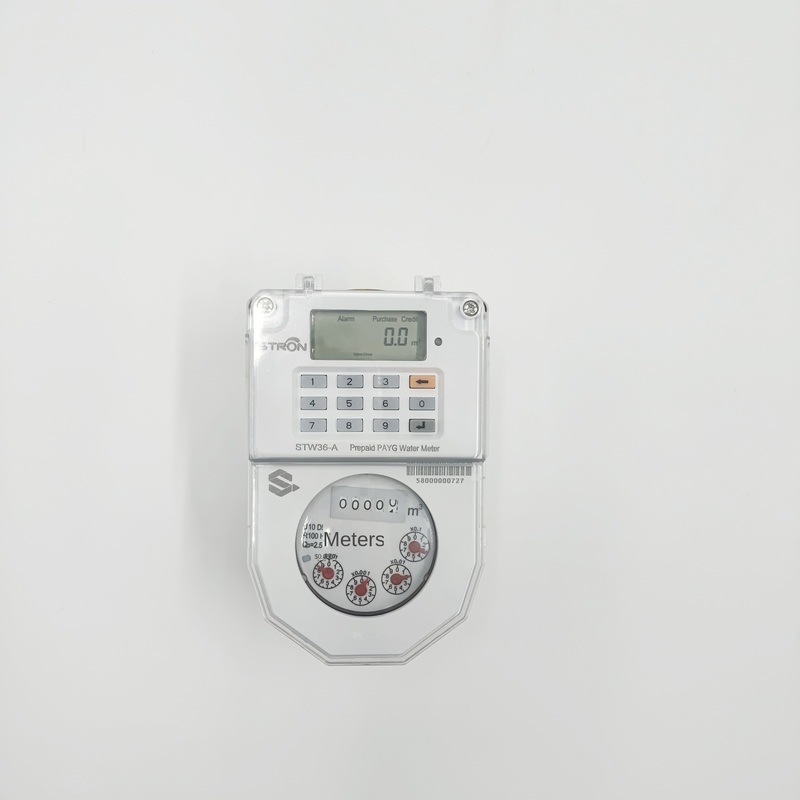

Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication 2 Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication 3

Achieving accuracy up to R160 (optional), the STW36-A features:

  • Special Anti-Tamper function that automatically closes valve when detecting magnetic fields or cover opening
  • Full compliance with STS standards
  • IP68 waterproof protection rating
Extended Battery Life with Triple Protection

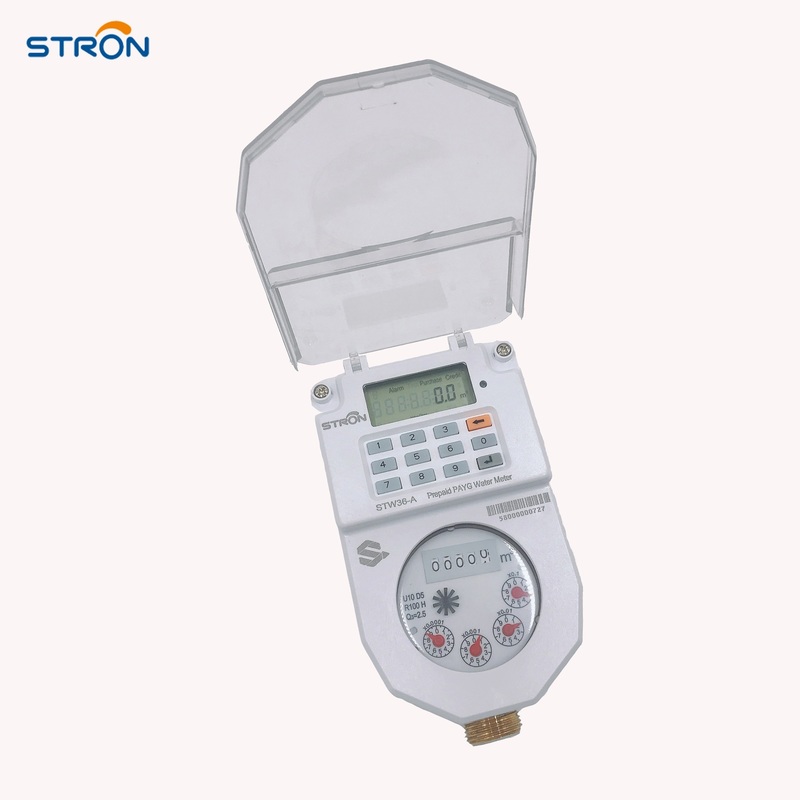

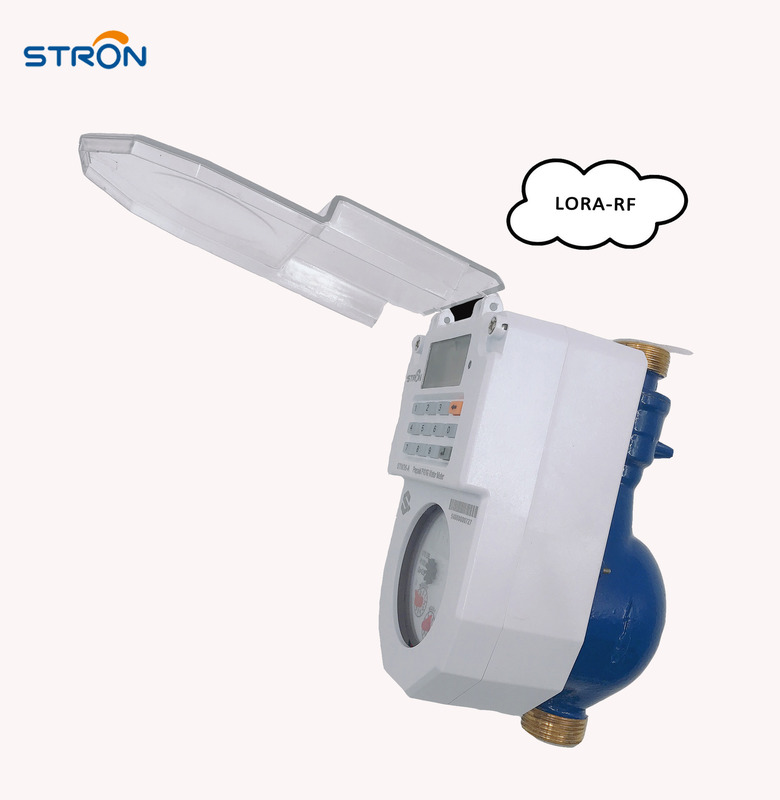

Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication 4 Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication 5

Engineered for longevity with:

  • High-performance lithium battery
  • Optimized energy consumption
  • Triple protection against moisture

Field tests confirm over 6 years of continuous operation.

Integrated Smart Vending System
Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication 6 Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication 7

Includes free Stronpay water vending software that integrates with:

  • Mobile Money platforms (M-PESA, Alipay, MTN, Airtel)
  • Integrated keypad for TOKEN entry
  • Dual top-up options (in-person or mobile)
Vending System Features
  • Token-based recharge, data management, and restoration
  • Maximum overdraft setting
  • Comprehensive role and user management
Stron Water Meter AMI Solution
Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication 8

Our free AMI system enables:

  • Collective meter reading
  • Remote monitoring
  • Autonomous recharge
Key Features
  • IP68 waterproof rating
  • Up to 8 years battery life
  • Automatic valve control
  • STS Standard compliance
  • Real-time clock
  • Configurable step pricing
  • Anti-Tamper magnetic protection
  • Optional LoRa-RF communication
  • Mobile payment integration
Technical Specifications
Metrological Parameters
Size DN15mm 1/2" DN20mm 3/4" DN25mm 1"
Overload flow rate Q4 3.13 5 7.87
Permanent flow rate Q3 2.5 4 6.3
Transitional flow rate Q2 0.04 0.064 0.1
Minimum flow rate Q1 0.025 0.04 0.063
Ratio "R" Q3/Q1 100 100 100
Maximum working pressure 16bar 16bar 16bar
Maximum pressure loss 0.6bar 0.6bar 0.6bar
Maximum reading 99999 99999 99999
Max temperature 50°C 50°C 50°C
Max permissible error (MPE) Q1≤Q≤Q2,MPE=±5%
Q2≤Q≤Q4,MPE=±2%
Basic Functionality
Function Details
Prepayment STS Standard, recharge by input 20 digits TOKEN
Low credit alarm Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch Meter can be switched to prepaid or post-paid mode
Non-return valve Prevents back-flow
Anti-tamper Automatically closes valve after detecting magnetic field or open cover
Step tariff Configurable via TOKEN input
Overdraft collection Non-revenue water can be collected daily or monthly
Communication Optional AMI system via LoRa-RF or Bluetooth 4.0
Information inquiry Users can check credit, purchases, and total credit via short codes
Physical Dimensions
Size DN15 1/2" DN20 3/4" DN25 1"
Length (mm) 165/190 190 225/260
Width (mm) 99 99 103
Height (mm) 104 106 114
Connecting thread G3/4B G1B G1-1/4B
Company Information
Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication 9
Certifications
Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication 10 Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication 11
Frequently Asked Questions
Q: Can I have a sample to test it?

A: Samples are available with a nominal fee to cover costs. For large orders, sample costs will be deducted from your purchase price.

Q: When can I receive the goods?

A: Standard delivery takes 5-10 days. Custom orders require 15-30 days.

Q: How many users of your product in the world?

A: Our primary markets are Africa and South Asia with approximately 500,000 users across these regions, including ODM/OEM partnerships.
