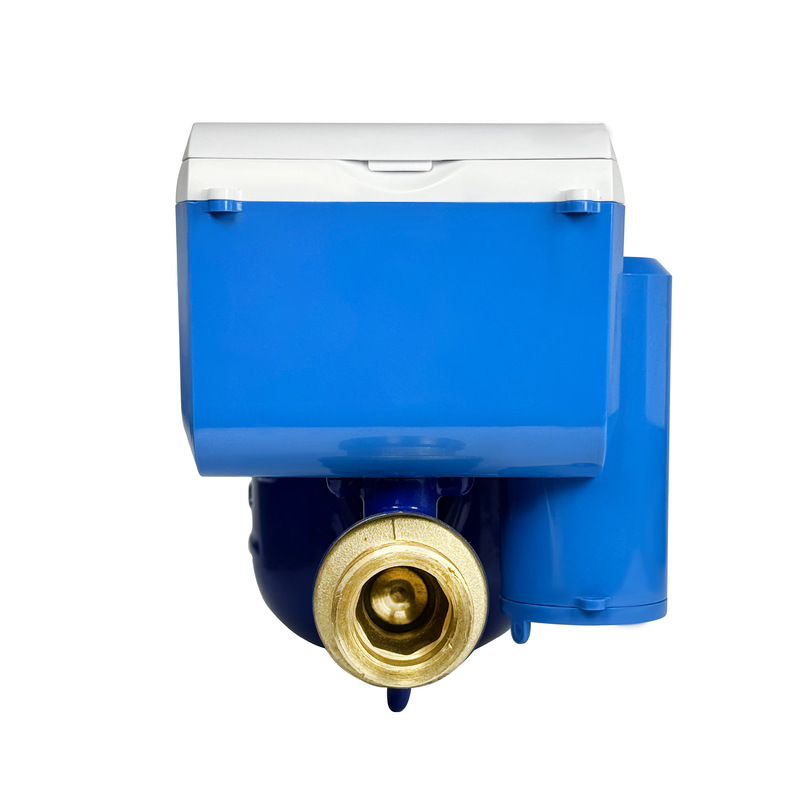

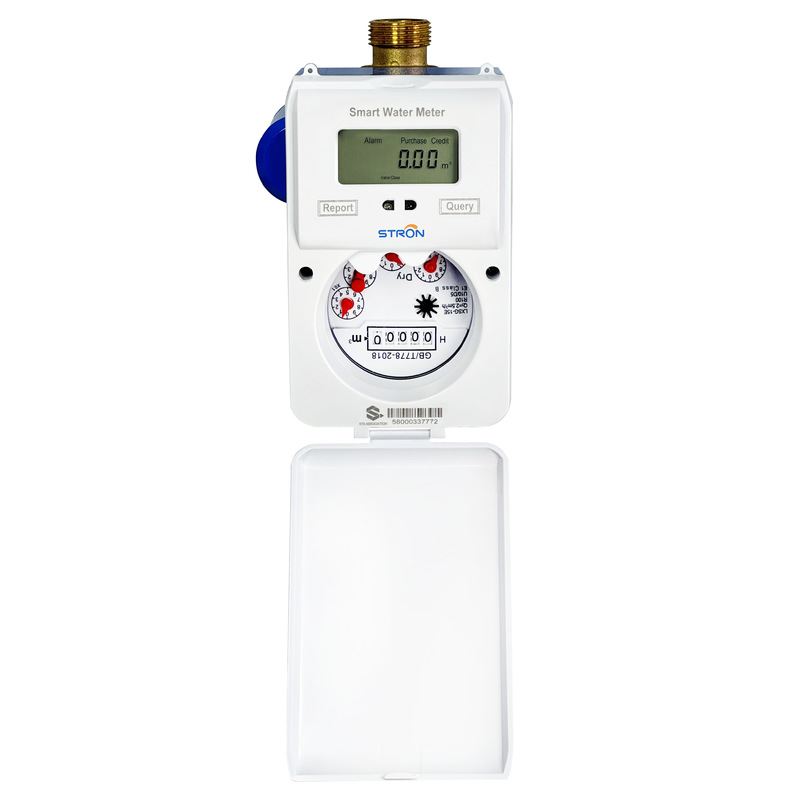

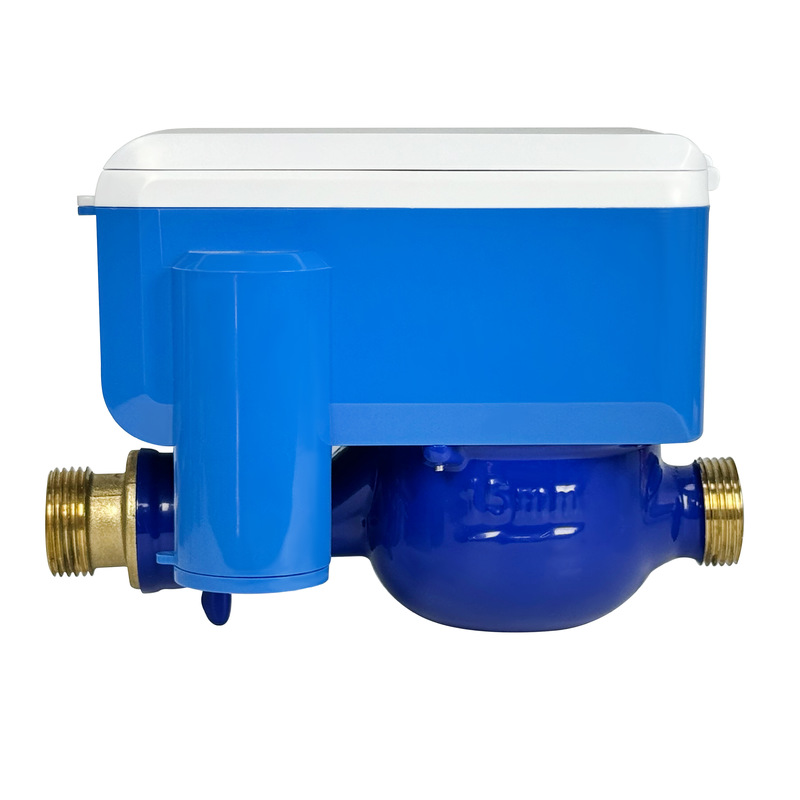

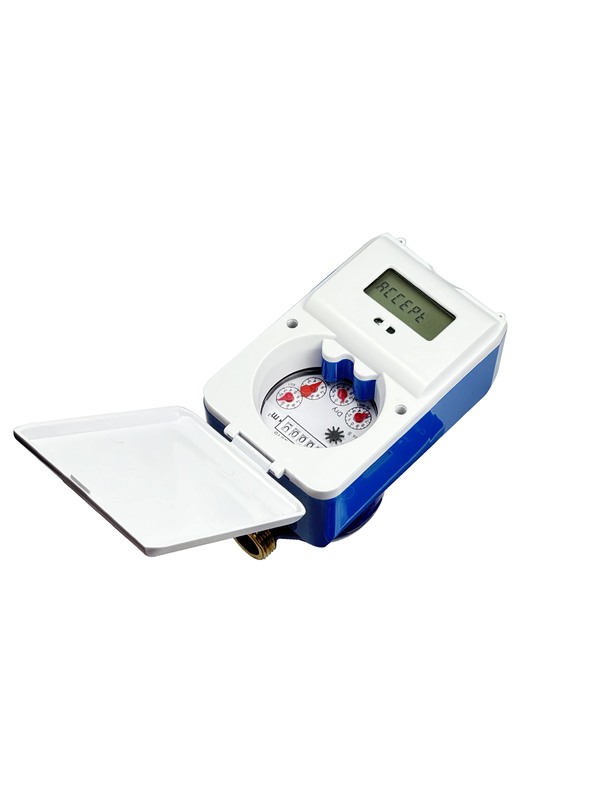

Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter

Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter

LCD Display Smart Water Meter

Threaded Connectivity Prepaid Water Meter

OEM/ODM Support STS Water Meter

Luogo di origine:

Hunan, Cina

Marca:

Stron

Certificazione:

STS Certificate,ISO9001,ISO14001

Numero di modello:

STW36

Contattaci
Chiedi un preventivo
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter
Dettagli del prodotto
Classe di protezione:
IP68
Durata della batteria:
8 anni
Tipo di visualizzazione:
schermo LCD
Classe di precisione:
Classe C
Pressione dell'acqua:
16mp
Modalità di carica:
Sostegni dei prezzi di punto
Protezione anti-omicidio:
Protezione del campo magnetico
Protocollo di comunicazione:
LORA RF o Bluetooth 4.0
temperatura massima:
50℃
Perdita di pressione massima:
00,6 bar
Portata di sovraccarico:
3,13 (DN15 mm), 5 (DN20 mm), 7,875 (DN25 mm)
Portata permanente:
2,5 (DN15 mm), 4 (DN20 mm), 6,3 (DN25 mm)
Portata minima:
0,025 (DN15 mm), 0,04 (DN20 mm), 0,063 (DN25 mm)
Portata transitoria:
0,04 (DN15 mm), 0,064 (DN20 mm), 0,1 (DN25 mm)
Pressione di lavoro massima:
16 Bar
Evidenziare:

LCD Display Smart Water Meter

,

Threaded Connectivity Prepaid Water Meter

,

OEM/ODM Support STS Water Meter

Termini di pagamento e spedizione
Quantità di ordine minimo
100
Prezzo
$43-45
Prodotti correlati
Un buon prezzo. Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life in linea

Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life

Ottieni il miglior prezzo
Un buon prezzo. DN15 Prepaid Smart Water Meter with 999999.99m³ Measurement Range Anti-Theft Keyboard Type and 165mm*190mm*260mm Size in linea

DN15 Prepaid Smart Water Meter with 999999.99m³ Measurement Range Anti-Theft Keyboard Type and 165mm*190mm*260mm Size

Ottieni il miglior prezzo
Un buon prezzo. DN25 STS Standard Prepaid Water Meter with 0℃-50℃ Temperature LCD Display and LoRa-RF Communication in linea

DN25 STS Standard Prepaid Water Meter with 0℃-50℃ Temperature LCD Display and LoRa-RF Communication

Ottieni il miglior prezzo
Un buon prezzo. Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter in linea

Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter

Ottieni il miglior prezzo
Contattaci
86-0731-22421066
Contattaci ora
Descrizione del prodotto
2025 New Type High-Capacity Wireless Communication RF Lora Smart Split STS Prepaid Water Meter
This STS standard token-type prepaid water meter features IP68 waterproof rating for operation in harsh environments. Its Multi-Jet construction ensures reliable operation even in muddy water without clogging. With low pressure loss (<0.06Mpa) and maintained accuracy beyond 10 years of use, it's available in multiple configurations to meet various requirements.
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 0 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 1 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 2
Product Variants
Prepaid Keypad Type Plastic Water Meter
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 3 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 4
Prepaid Keypad Type Brass Water Meter
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 5 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 6
Prepaid Split Keypad Type Brass Water Meter+CIU
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 7 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 8
Technical Specifications
Function Details
Prepayment STS Standard, recharge by input 20digits TOKEN
Low credit alarm Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch Meter can be switch to prepaid mode or post-paid mode
Non-return valve Non-return valve inside for preventing back-flow
Anti-tamper Meter will automatically close the valve after detection of magnetic field and open cover event
Step Tariff Step Tariff can be set by inputting corresponding TOKEN
Overdraft Collection Non-Revenue gas (Overdraft) can be collected day by day or month by month
Communication The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
Information Inquiry Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code
Metrological Parameters
Size DN15mm 1/2" DN20mm 3/4" DN25mm 1"
Overload flow rate Q4 3.13 5 7.875
Permanent flow rate Q3 2.5 4 6.3
Transitional flow rate Q2 0.04 0.064 0.1
Minimum flow rate Q1 0.025 0.04 0.063
Ratio "R" Q3/Q1 100 100 100
Maximum working pressure 16Bar 16Bar 16Bar
Maximum pressure loss 0.6Bar 0.6Bar 0.6Bar
Maximum reading 99999 99999 99999
Max temperature 50℃ 50℃ 50℃
Error Q1≦Q≦Q2 5% 5% 5%
Error Q2≦Q≦Q4 2% 2% 2%
Vending Process
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 9
Operation Steps
  1. Login vending system
  2. Meter number registration
  3. Customer information registration
  4. Price Setting
  5. Open Account
  6. Vending/Topping up meters
  7. Get the Token
  8. Input Token to meter with keypad
  9. Recharging successfully
Vending Options
Option 1: Vending at local sales point
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 10
Option 2: Vending with third party APP/mobile payment/billing system with API
API: Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending software.
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 11
Company Profile
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 12
Hunan Stron Smart Co., Ltd, founded in 2007, is the leading supplier of smart meters in China. With 500 employees including 100 technical engineers (100 with professional titles), we are committed to being the premier intelligent product service provider.
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 13 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 14
Stron has maintained long-term cooperation with partners from over 60 countries and regions including South Africa, Nigeria, Tanzania, Kenya, Indonesia, Myanmar, Cameroon, etc.
Certifications
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 15 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 16 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 17
